Sentinel Playbook: Device Isolation Using MDE API (Part 2 - Logic App)

In Part 1 we learned how to authenticate with the Microsoft Defender API and retrieve a list of devices. In this part 2, we’ll continue building on that by creating an Azure Logic App that isolates devices in bulk based on their Device Tag or Group.

Step 1: Designing the Logic Apps

Now we need to understand what are we going to do with Logic App. Here is the flow that we are trying to achieve by using Logic App + API. In part 1 demonstration, we have shown how we can GET Access Token and GET Defender device list.

graph LR;
  Trigger --> step2["API call to GET Token"] --> step3["Use token to GET device by Tag/Group"] --> step4["Loop, Use token POST to Isolate device one by one"]

Once you are ready, our next step now is to go to Logic Apps page and create new Logic App. For this demo, I will be using Consumption hosting option as I will not be using this API that much for demo purpose.

Adding Permission to LogicApp

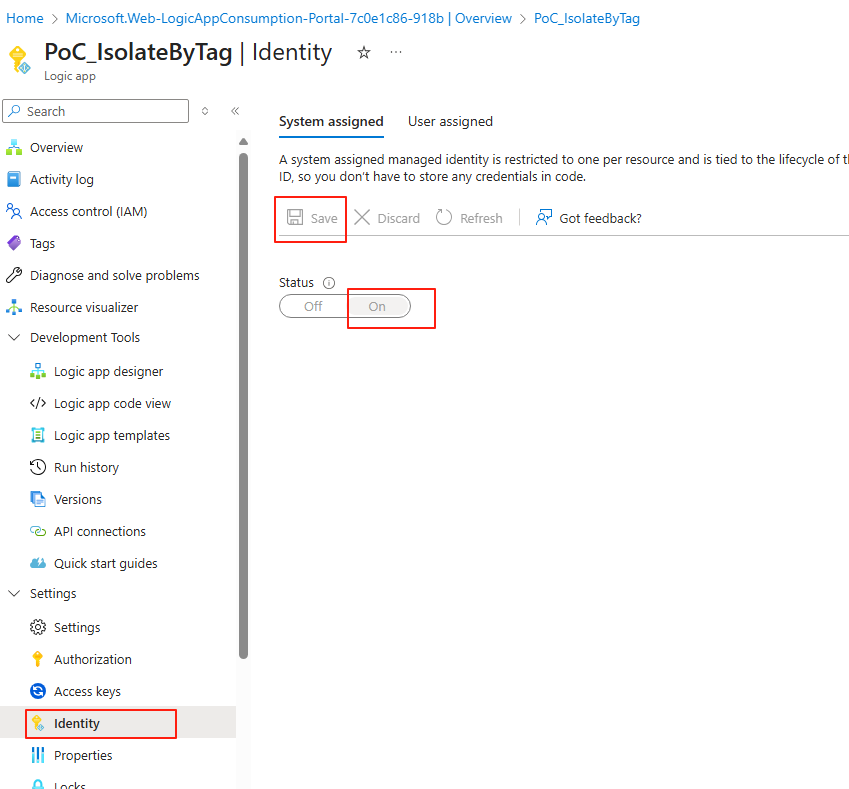

We need our Logic App to be able to read client secret that we have stored in Azure Key Vault previously. To do so, go to Logic Apps > Settings > Identity page , we need to set up Managed Identity.

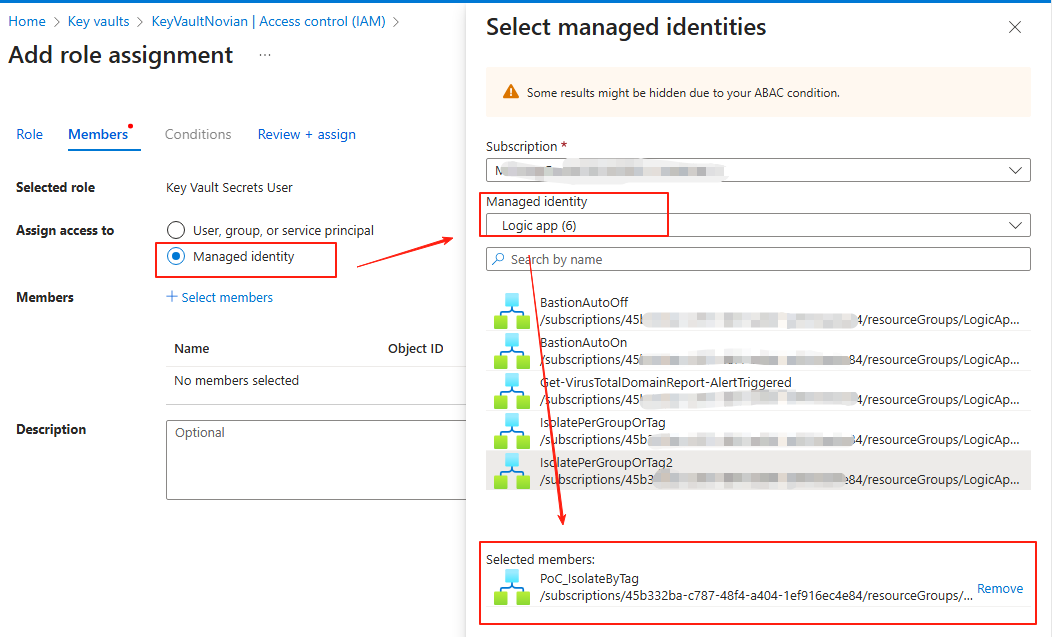

Now go to the Key Vault resource that you created in Part 1 > Access control (IAM) > Add, you want to add Key Vault Secrets User > Assign access to Managed identity. Save this Assignment.

Logic App Designer - Trigger

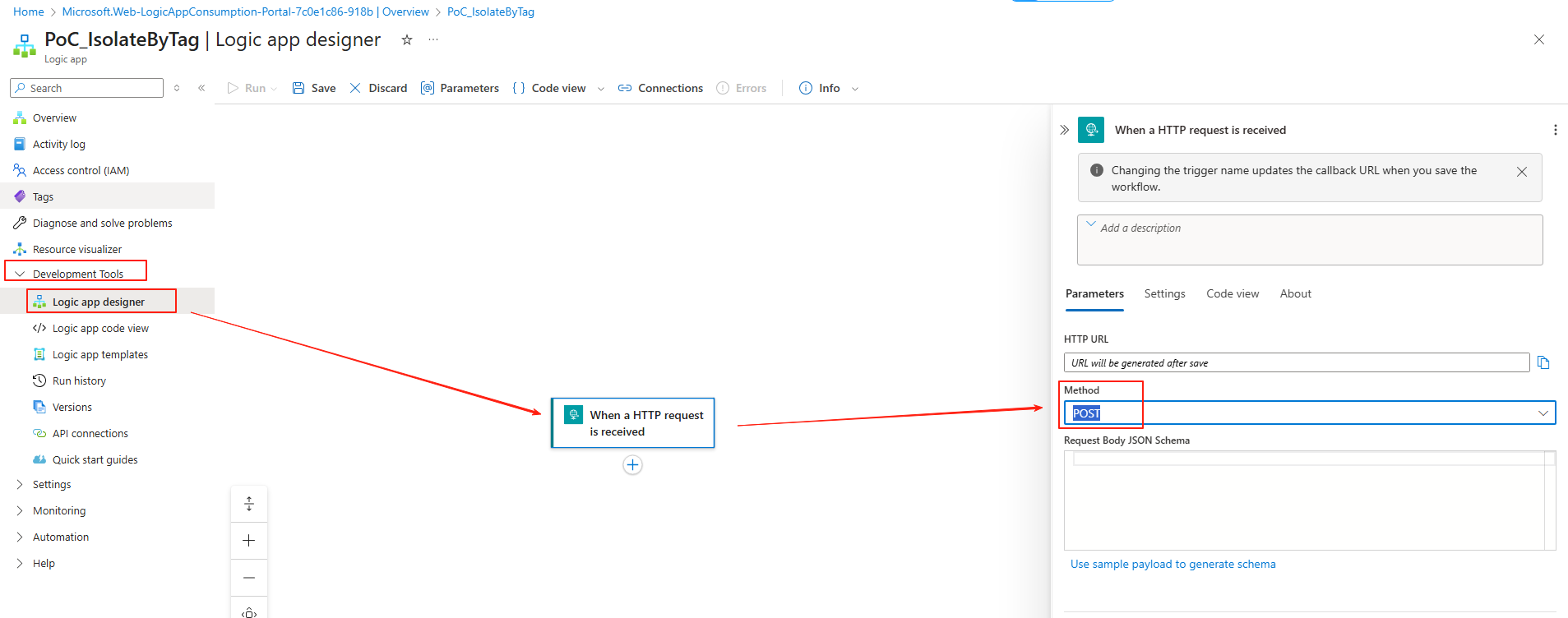

Go to Logic app designer. As this is a proof of concept, I will use manual trigger (When a HTTP request is received), and change the method to POST. If you want to create this as automation, you can modify the trigger.

API call to GET Token

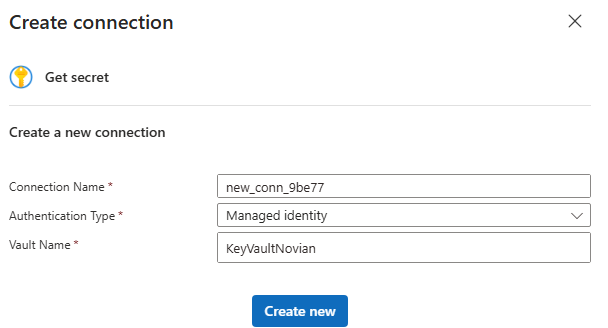

We need to retrieve the secret from Key vault. Create new action to Azure Key vault > Get secret, select Managed identity and paste your KeyVault name.

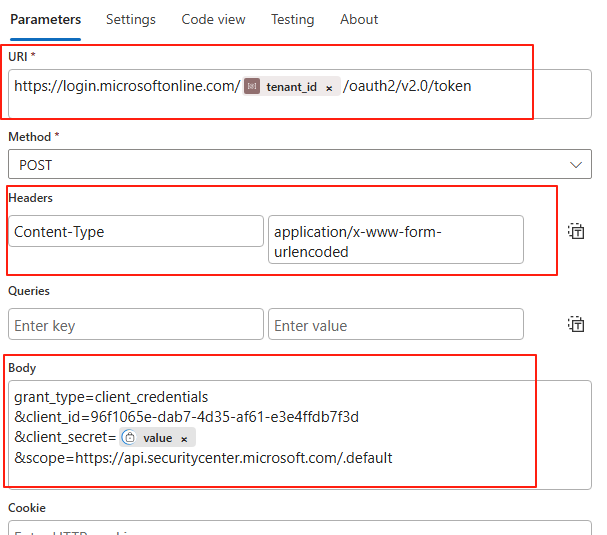

Next, we need to use these secret and to obtain our Access Token. Create new action for HTTP and enter the following information (modify the {tenant-id},{client-id} and {client-secret} accordingly):

Name: Get Token

URI: https://login.microsoftonline.com/{tenant-id}/oauth2/v2.0/token

Headers: Content-Type -> application/x-www-form-urlencoded

Body:

• grant_type=client_credentials
• &client_id={client-id}
• &client_secret={client-secret}
• &scope=https://api.securitycenter.microsoft.com/.default

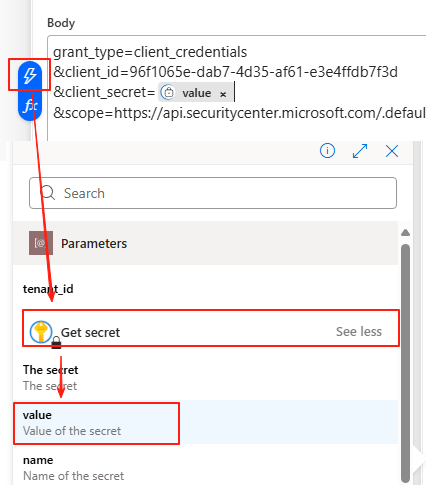

To get the Client Secret from our Azure Key Vault, do the following:

Use token to GET device by Tag/Group

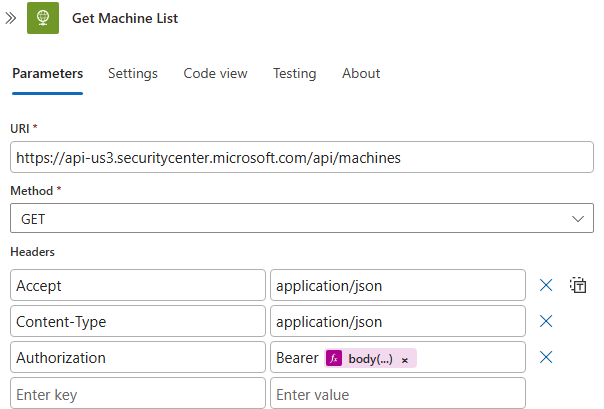

Create a next action to HTTP again, and this time use the following information:

Name: Get Machine List

URI: https://api-us3.securitycenter.microsoft.com/api/machines

Method: GET

Headers:

• Accept -> application/json
• Authorization -> Bearer @{body('Get_Token')?['access_token']}
• Content-Type -> application/json

And since we want to filter it based on Device Tag in this example, create new action to Data Operations > Filter Array, input the following information:

Name: Filter for DeviceTag

From: @{body('Get_Machine_List')?['value']}

Filter Query: @contains(@{item()?['machineTags']},"TestTag")

Quick Sanity Check

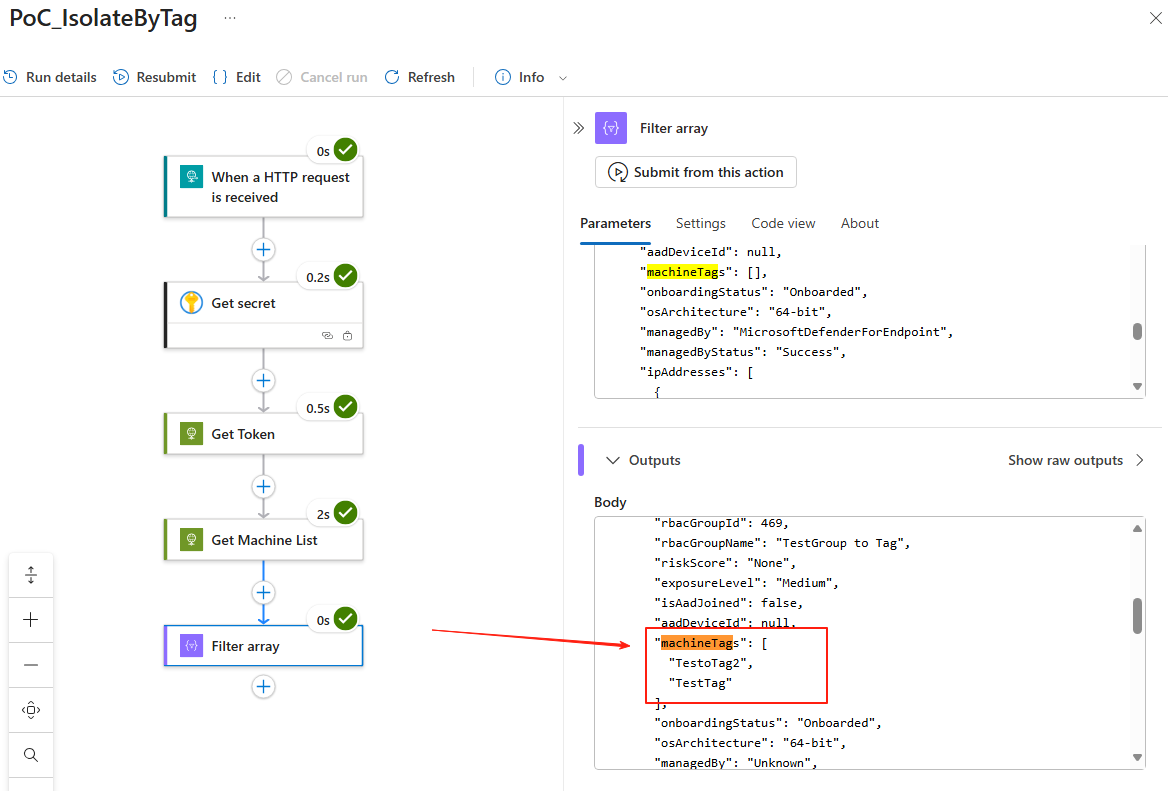

Do a quick check, lets Run our Logic Apps, and see the result from top right Notification section > Open Run. You should be seeing something similar to this. Under the Outputs, now it only shows JSON details of devices with TestTag Machine Tag.

Loop, Use token to POST Isolate device one by one

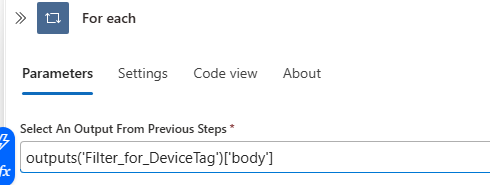

Now lets use the filtered data to Loop and execute Isolation one by one. Lets create our next action, For each and at the field Select an output from previous steps input @{outputs('Filter_for_DeviceTag')['body']}.

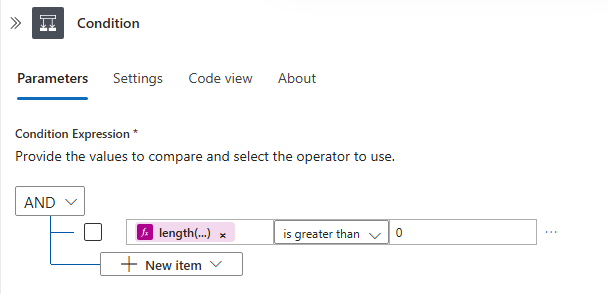

Create new action inside the loop, and create Condition. We will use this as our safeguard, this safeguard ensures that the isolation command only runs when the filtered list is not empty. Without it, a wrong filter could isolate all devices in your tenant.

. Inside the condition:

@{length(body('Filter_for_DeviceTag'))} is greater than 0

Inside the True condition, we want to create new Action > HTTP.

Name: Isolate Batch

URI: https://api.securitycenter.microsoft.com/api/machines/@{item()?['id']}/isolate

Method: POST

Headers:

• Content Type -> application/json
• Authorization -> Bearer @{body('Get_Token')?['access_token']}

Body: {"Comment": "Isolating device due to suspicious activity","IsolationType": "Full"}

Step 2: Testing and Confirming

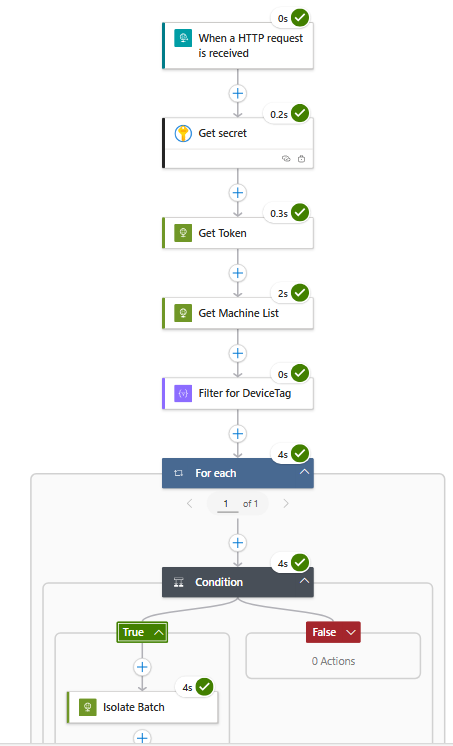

Thats all the set up you need from Logic App. Now I will test this by manually Run the Logic Apps, and it should send isolate command to devices in my environment with the “TestTag” Device Tag. You will see the result flow.

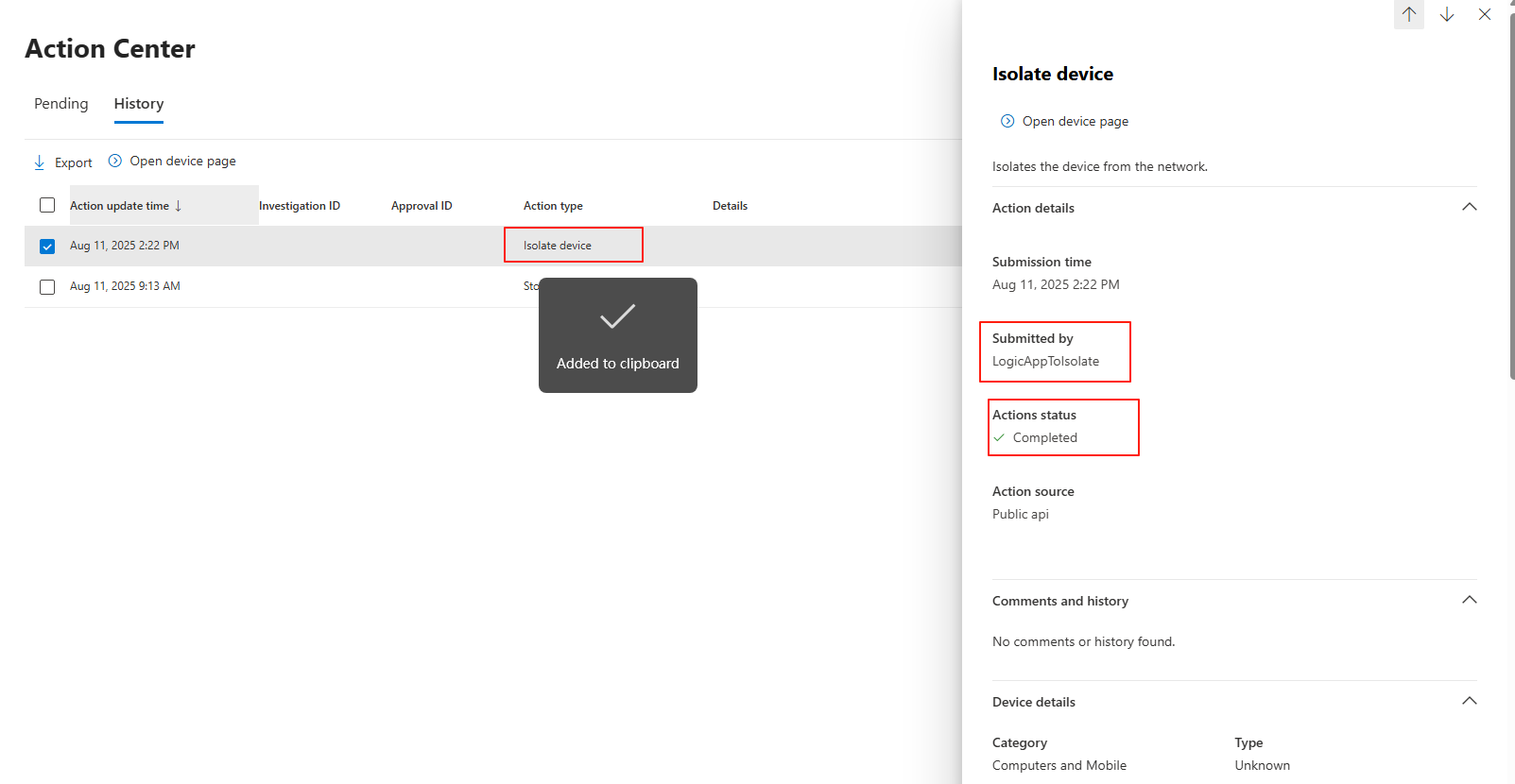

Now go to Security Portal > Investigation & response > Actions & submission > Action center > History, you should see the Isolate device command being sent by Logic App.

Wrapping Up: Whats Next?

With this setup, you now have a working Logic App that can securely fetch API credentials from Key Vault, query Defender for devices by tag, and isolate them in bulk — all with a single click (or based on trigger without manual intervention).

From here, you can take this proof of concept further by:

• Automating triggers — e.g., start the workflow automatically when a high-severity incident is detected in Microsoft Sentinel.
• More Filtering — isolate based on alert category, severity, or custom metadata instead of a static Device Tag.

This workflow not only streamlines incident response but also shows how combining Defender APIs with Logic Apps can build powerful, automated security operations.
